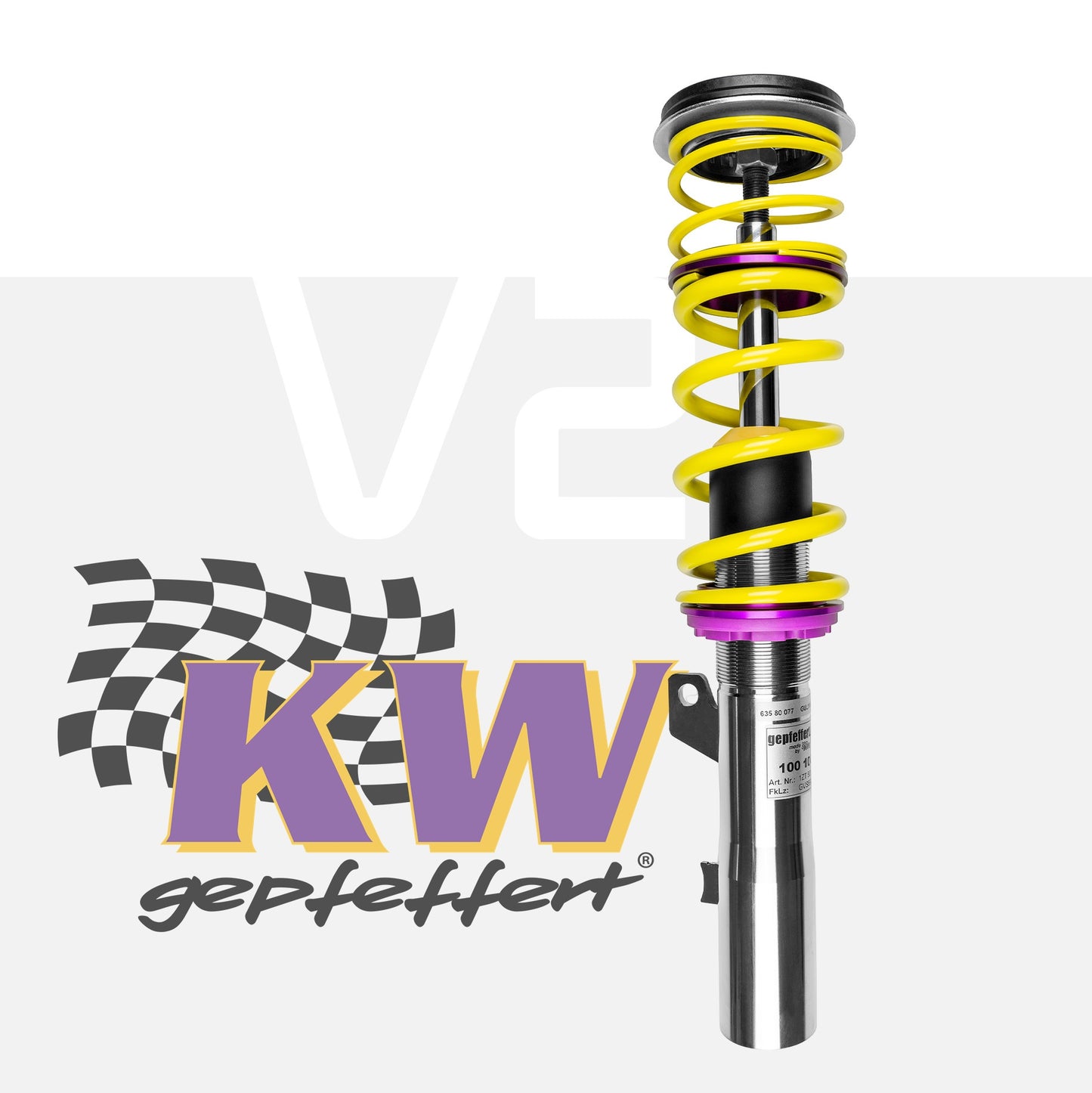

gepfeffert.com coilover suspension INOX V2 Ø 55mm (low version without camber dome bearing)

Fits the following models:

• VW Golf VII

• Audi TT 8S / A3 8V
• Skoda Octavia 5E

• Seat Leon 5F

Attention: No expert opinion for vehicles with 4WD

Gepfeffert V2 without adjustable camber dome bearings

The gepfeffert V2 without adjustable camber dome bearings is mounted with the standard support bearings. We refer to the gepfeffert chassis without camber dome bearings as the "small depth version".

Definition "small depth version":

We distinguish here coilovers of the brand gepfeffert.com made by KW, with or without adjustable camber dome bearings (model & platform dependent). The suspensions without camber dome bearings have up to 35mm more lowering, compared to a standard KW coilover suspension.

Example Golf 7 GTI:

• Series KW coilover suspension: adjustment range 20-45mm
• GEPFEFFERT KW coilover suspension: adjustment range 35-70mm

These suspensions were built specifically for our customers, who have put the focus on a maximum of 15-35mm Mehrtieferlegung compared to a series KW coilover suspension, without using a gepfeffert version with camber dome bearing (Uniballlager).

The chassis with adjustable camber dome bearings, on the other hand, have even greater "leeway" for even more lowering and even more upgrade options, in order to be able to tailor the vehicle even more individually to the requirements of the respective driver.

Example Golf 7 GTI:

• Series KW coilover suspension: adjustment range 20-45mm
• GEPFEFFERT KW "small depth version" without camber dome bearing: adjustment range 35-70mm
• GEPFEFFERT KW with adjustable camber dome bearings: adjustment range 45-95mm (upgrade possibilities with other spring systems up to 130mm possible)

Chassis of the brand gepfeffert KW "small depth version" (without camber dome bearing) can of course also be found here in the online store.

For more stability or ride comfort. With adjustable rebound damping.

The KW coilover suspension variant 2 "inox-line" is the suspension for the experienced sports driver who wants to make adjustments to the setup in addition to lowering the vehicle individually. The individually adjustable rebound damping ensures better connection on fast road sections and easier vehicle control. In addition, rolling comfort on bad roads can be significantly influenced with adjusted rebound damping.

The gepfeffert.com® V2 coilover suspension made by KW

With the KW coilover suspension variant 2 "inox-line", you can influence the handling and comfort yourself as an experienced sports driver through the individually adjustable rebound tuning. The 16 exact clicks allow you to tune the KW dampers tighter or more comfortable without affecting the bottom valve of the compression stage.

Technical information:
